ISTP type increased safety pre blowing system

The ISTP-6ZA pre start blowing system can blow out Exe/Exn or non explosion proof motor chambers, avoiding the risk of explosion caused by flammable and explosive gases entering the motor during equipment start-up.
4008769669
Book Now
Detail



The system consists of two units, the control unit and the pressure relief unit (as shown in the above figure). The control unit controls the supply of compressed gas and confirms the blowing flow rate/pressure and time. The pressure relief unit serves as a safety outlet for blowing gas from the equipment and provides a signal to confirm the flow parameters of the gas in the motor chamber. The pressure relief unit is equipped with a flame arrester. After the motor is purged, maintain a constant pressure until the motor starts.

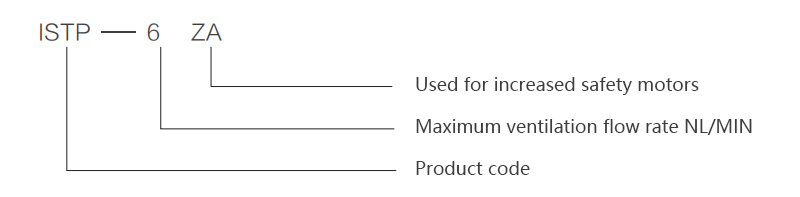

1、 Model and meaning


2、 Product series



3、 Basic technical parameters


·System type: ISTP-6ZA pre blowing system

·Explosion proof mark: EXDEMBICT5GB

·Operation mode: Pre start blowing

·Blow flow rate: 2000 3000 4000 5000 6000NL/MIN

·Leakage compensation amount: No leakage compensation function

·Shell material: 316 stainless steel

·Installation method: Install according to the drawing requirements and fix vertically



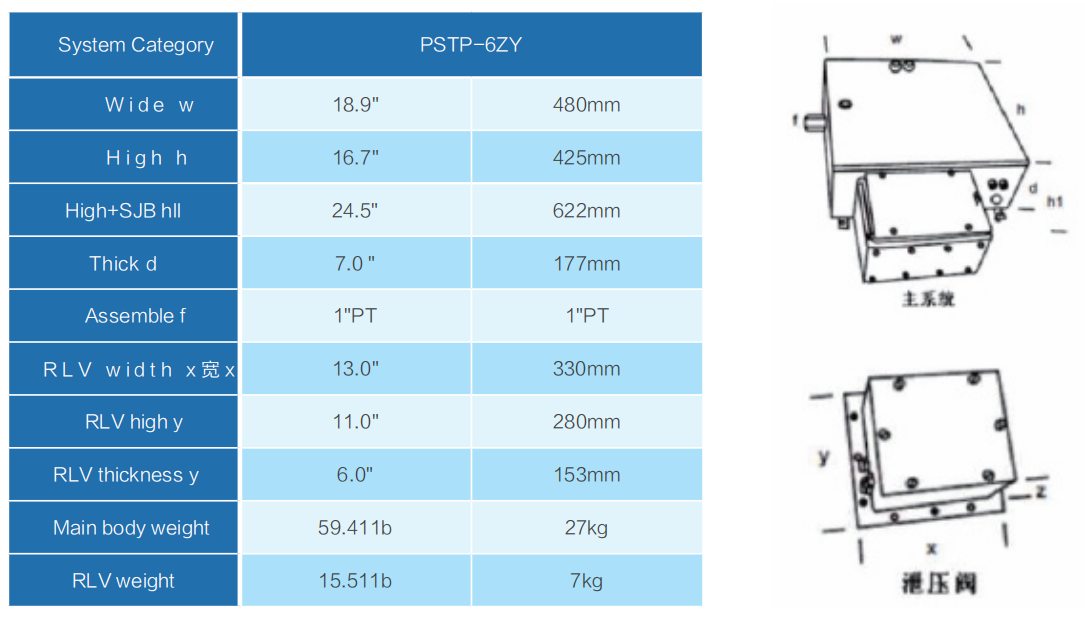

4、 Specification and size

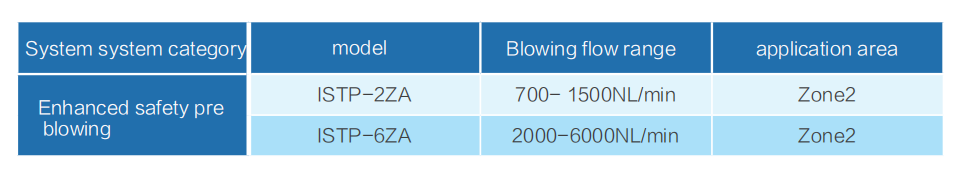

The specifications of the ISTP-6ZA control unit and pressure relief unit (see attached table) allow users to select the orifice plate of the RLV pressure relief valve based on the flow rate.
